GEORGIA BRIDGE
TASK

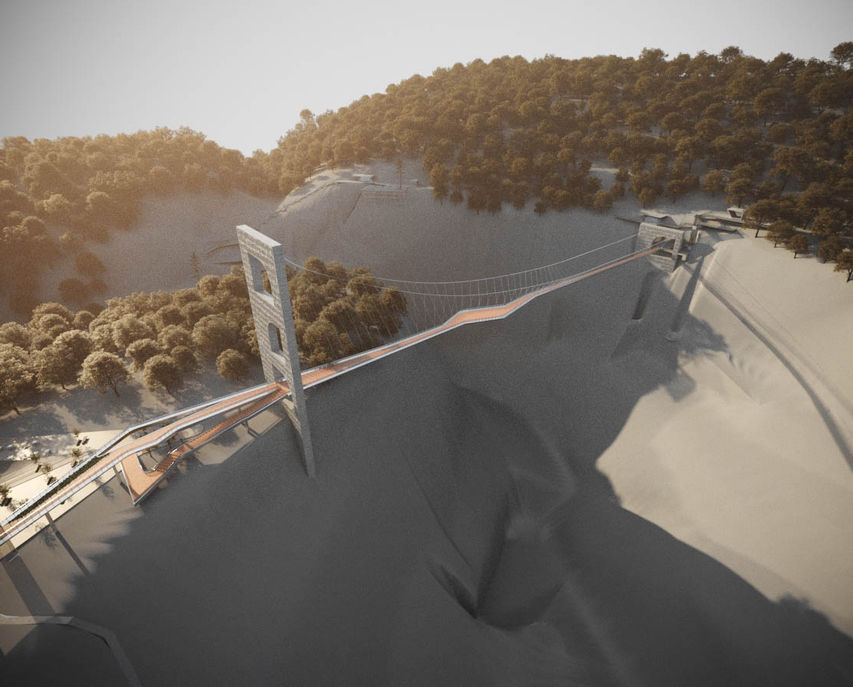

Design of bridge in Georgia, Okaces Kanioni
- Bridge design
- Master plan of the surrounding area
- Design a cafe/bar near the bridge
- Observation deck on the bridge
- Four observation decks on the opposite slope
- A cascade of pools on the opposite slope near an existing waterfall
- Hotel at the beginning of the bridge
- Rope jumping and zipline
- The existing concrete structure is preserved
- Canyon 3d model
SOLUTION
- The height of the bridge reach up to 58 meters due to the bridge support
- Self-similarity of the Georgian font and arch openings - creates a set that abstractly resembles a fractal.
- Through holes in the support are designed to reduce its weight, they can also be observation platforms, etc.
- Material - concrete poured in layers or special formwork from boards
- Georgian letters - text made from architectural concretecreate a non-standard texture
- Asymmetry is the difference in height of the supports for the vants.
